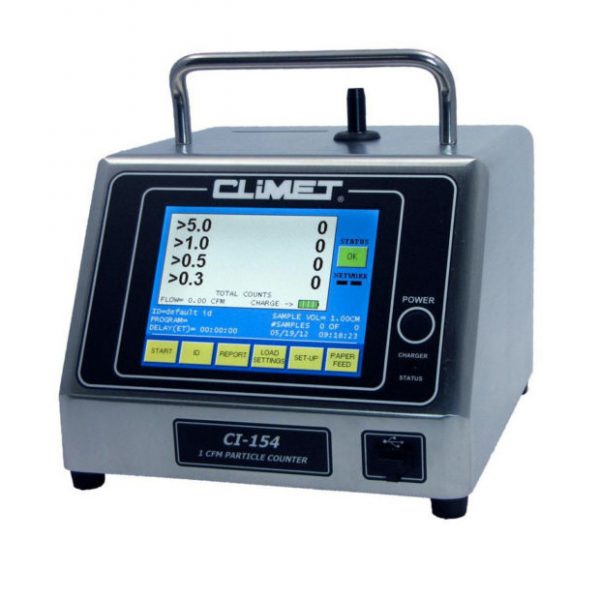

Particle Counter Cl-154
|Configuraions||: 1 CFM parcle counter w/ RS-232, Ethernet and USB data transfer|
Sample Flow Rate : 1 CFM (0.028 cubic meter per minute, or 28.3 liters per minute)
Sample Volume : Adjustable in cubic feet, cubic meters, or in liters Sample time to measure a cubic meter : 35.3 minutes
Flow Rate Control: Yes. Electronic, automtic closed loop HEPA Filtered Exhaust : Yes, all models cerfied to ISO Class 3.
Standard Particle Channel Sizes: 0.3, 0.5, 1.0, 5.0 microns (other sizes upon request).
Concentration Limit: 1 x 10⁶ particles per cubic foot (35.3 x 10⁶ particles per cubic meter) (10% coincidence) .
Resolution: Exceeds requirements of ISO 21501-4 of 15% (4-10% typical).
Count Efficiency: 50% Count Efficiency exceeds ISO 21501-4 of ±20%
Max. False Count: 7.1 / CM ≥ 0.3 µm (95% UCL) per ISO 21501-4. Optics : Rhodium plated metal ellipsoidal mirror (extreme durability and resistant to contamintion)
Laser Diode: Opmal balance of long life, stability and resoluon for improved accuracy.
Cleaning: Compatible with common cleaning and sterilization procedures, including VHP.
|Programming & Memory||: Program: Up to 30 user-defined and named programs; containing IDs and seWngs Memory: 3000 samples: Date, Time, 4 Paticle Channels, Flow, ID, Sample Volum. Unit ID: User Selectable User ID: Up to 20 users, plus supervisor, with password security Security: Four security levels, with user authentication. Location ID: Up to 100 per program; 16 characters. Cloning: All models support Unit-to-Unit, and PC-to-Unit. Cloning via USB flash drive on CI-154 model.|
|Included Accessories and||
