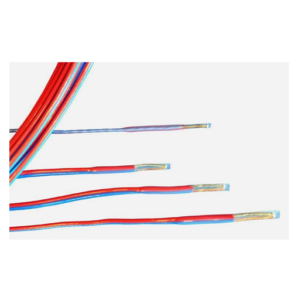

Kaye Thermocouple Type T (Ultra Premium)

    Tags: , .

    Deskripsi produk:

    A thermocouple is an electrical device consisting of two dissimilar electrical conductors forming electrical junctions at differing temperatures. A thermocouple produces a temperature-dependent voltage as a result of the thermoelectric effect, and this voltage can be interpreted to measure temperature.

    Features

    • Measurement accuracy to ± 0.25 C
    • Available in 3 or 7 strand constructions
    • Available uncut in spools or cut to length with teflon tips
    • Ultra-Premium: Measurement accuracy to ± 0.1 C
    • Ultra-Premium: Available with Kapton insulating jacket for applications to 300 C

    Kaye Thermocouple Wire Specifications
    Wire Grade Ultra – Premium
    3-Strand 7-Strand 7-Strand Kapton
    Model K0258 K0255 K0250
    Gauge 27 AWG 22 AWG 22 AWG
    Accuracy
    @ 40°C ±0.1°C ±0.1°C
    @ 121°C ±0.3°C ±0.25°C
    @ 300°C ±1.2°C
    Maximum variation within group for all wire :
    @ 40°C ±0.05°C maximum;  ±0,03°C typical
    @ 121°C ±0.1°C maximum;  ±0,05°C typical
    @ 300°C ±0.3°C maximum;  ±0,15°C typical
    Size 3-strand 0,042″ (1.07mm) minor          0.074″ (1.88mm) major
    7-strand 0,095″ (2.41mm) minor          0.120″ (3.03mm) major
