Wireless Data Logger

    Deskripsi produk:

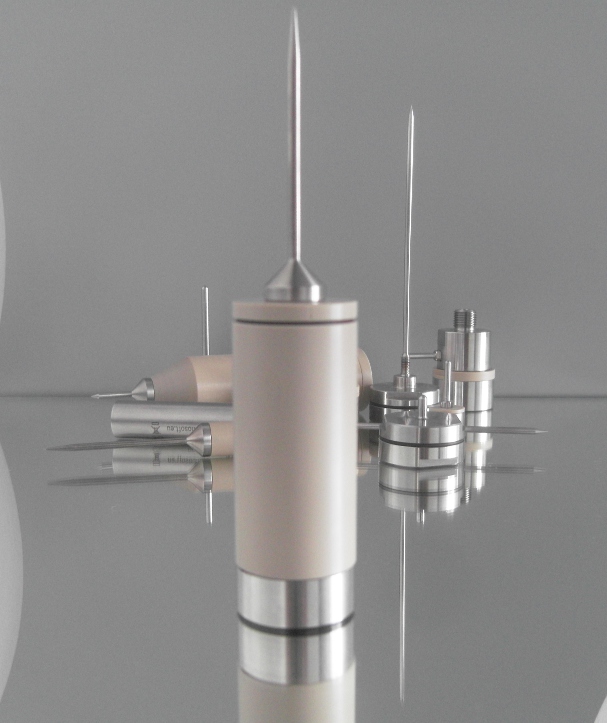

    he SterilCylCyl Radio is the wireless data logger for high temperatures (up to 140°C). It is made up by a cylindrical body made of PEEK, a plastic material highly resistant and food compatible; metallic parts are in AISI316L stainless steel. The main body diameter is 30 mm, the length 76 mm.. It is available with a 3 mm diameter Probe of different length, even on demand; the probe is ideal for cans, food packages and jars. The datalogger, therefore, has numerous applications in the food industry, where it is possible to monitor the actual product and not simply the environment in which it is manufactured. It is used, for example, to control meat and ham cooking, food packages, cans. The radio transmission allows to watch on the PC monitor the temperature and the F0/PU curves in real time, and set also threshold alarms.

    Applications:

    • real time temperature monitoring in autoclaves for sterilisation processes;
    • real time temperature monitoring in pasteurization tunnels;
    • real time temperature monitoring directly in contact with the food and liquid;
    • real time temperature monitoring during meat and ham cooking.

    Probes available:

    • 20, 60, 100, 125 mm length X 3 mm diameter;
    • on demand length (21-1000 mm) X 3 mm diameter;
    • 100 mm length X 5 mm diameter;
    • flexible probe with teflon cable, anti-break system in the connectors;
    • metal bendable probe.
    • There is also the PasteurCyl Radio, for pasteurisation processes, food grade and available with calibration certificate. The non radio loggers, for the same applications, are the SterilCyl Jumbo and the SterilDisk.

    Pro:

    • high accuracy and precision, food grade, probes of different size;
    • printed reports can be used for health regulations and ISO compliance;
    • data received with radio transmission, no installation required;
    • F0 and PU (Pasteurisation units) real time calculation and possibility to customize parameters;
    • no need to open them for PC communication;
    • no need to open them for PC communication;
    • an Accredia (NIST equivalent) calibration certificate is provided.



    The System
    The system is made up by:

    • SterilCyl Radio temperature datalogger;
    • DiskInterface HS;
    • SPD software;
    • USB Radio Receiver for wireless communication.

    This datalogger can be used with the Fastening System for probes to be applied on cans, jars, lids for process monitoring.
    For this logger the flexible probe, in teflon, the bendable probe and the spoon simulator are available.



    – –
    Size 76 X 30 diameter (mm)
    Probe: 20, 60, 100, 125 X 3 diameter (mm), on demand X 3 diameter (mm), 100 X 5 diameter (mm), flexible probe, bendable probe
    Material PEEK and stainless steel AISI316L (completely Food Grade)
    Temperature range 0 °C ÷ 140 °C
    Resolution 0,04 °C
    Accuracy ± 0,2 °C (within calibration range: 25°C ÷ 125°C)
    N° acquisitions 120000
    Acquisition interval From 1 every second up
    Battery life User replaceable
    3.800.000 acquisitions, with acquisition step of 1”; battery life might be less if exposed to high and low temperatures
    Protection degree IP68
    Compliancy  – EN12830 – EN285
    Radio 433,92 MHz
