Kaye LTR-150 Dry Block and Liquid Bath

    Tags: , , , .

    Deskripsi produk:

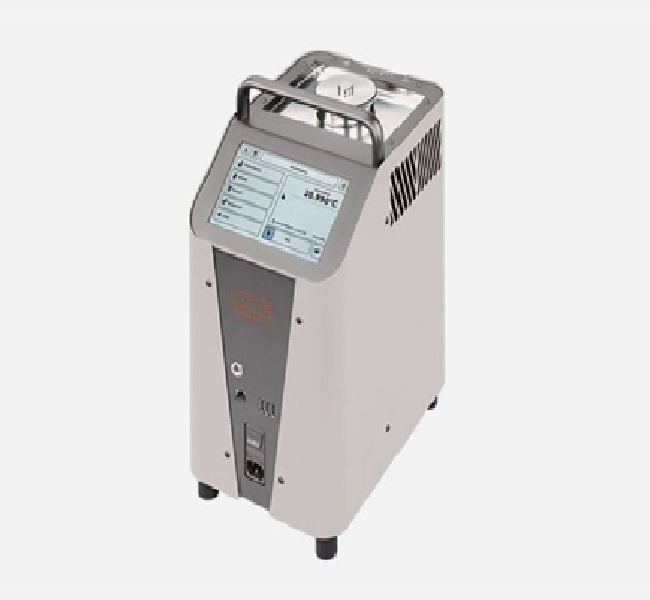

    Kaye LTR-150 Dry Block and Liquid Bath
    All-in-One Temperature Calibrator; flexible – easy to use from -30 to 150°C
    48 Thermocouple Capacity

    The Kaye LTR-150 is the most advanced multi-purpose calibrator specifically designed to address the capacity and flexibility needs for thermal validation. From its ability to calibrate 48 thermocouples capacity, to it’s versatility to function as a Dry Block, Liquid Bath or Surface calibrator, the LTR-150 saves hours of time and effort when calibrating or verifying validation sensors.

    The LTR-150 is backward compatible with the Kaye Validator AVS, Kaye Validator 2000, Kaye ValProbe or Kaye RF ValProbe software for automatic sensor calibration or can be used stand-alone via it’s easy to use touch screen display.



    Specifications Model
    Control Sensor LTR-150
    External

    Dry Block   Temperature Range*  -30 to 150°C (-22 to 302°F)  Accuracy ±0.1°C (±0.18°F) Stability ±0.010°C (±0.018°F) Uniformity 0.1 °C (±/- 0.18°F)

    Micro Bath   Temperature Range* -30 to 150°C (-22 to 302°F) Accuracy ±0.15°C (±0.27°F) Stability ±0.010°C (±0.018°F) Uniformity 0.15°C (0.27°F)

    Surface   Temperature Range -25 to 150°C (-13 to 302°F) Accuracy ±0.1°C (±1.8°F) Stability ±0.15°C (±0.27°F)

    Heating/Cooling time  20 to -25°C in 45 min
    20 to 121°C in 30 min
    121 to 20°C in 30 min
    -30 to 20°C in 20 min

    Block Dimensions   -> Diameter Ø 60 mm (Ø 2.36 in) -> Depth 170 mm (6.69 in)

    Display Unit   Display 7” Color-Touchscreen Unit °C / °F / K Resolution 0.1 / 0.01 / 0.001 °C / °F / K

    General Data   Interface Serial to Validator / Ethernet / 3 X USB Dimensions 210 mm x 300 mm x 380mm Weight (approx.) 13 kg / 28,66 lbs

    Power Supply 100 – 240 VAC, 50/60Hz  Power Consumption Approx. 375w

    * at an ambient temperature of 20°C / 68°F
