Liquid Bath for Ultra Low Temperature (CTR-80 )

    Tags: , , .

    Deskripsi produk:

    Description

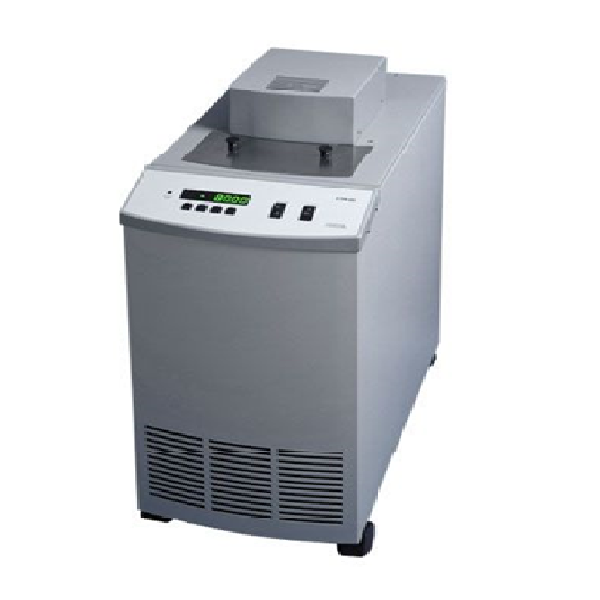

    Kaye CTR-80

    The CTR-80 bath is the ideal unit for calibrating temperature sensors used in freeze dryers, freezers, and ultra-low cryo units. Operating from -80 to 30°C, the CTR-80 brings fast response and high stability to your cold temperature applications. The CTR-80 outperforms all other low temperature baths in its class.



    Specifications CTR-80
    Range –80°C to 100°C (–112°F to 212°F)
    Ambient Operating Range 15°C to 25°C (59°F to 77°F)
    Stability ±0.006°C at –80°C (ethanol)
    ±0.010°C at 0°C (ethanol)
    ±0.010°C at 100°C (oil)
    Uniformity ±0.008°C at –80°C (ethanol)
    ±0.012°C at 0°C (ethanol)
    ±0.012°C at 100°C (oil)
    Set-Point Accuracy ±0.5°C
    Set-Point Repeatability ±0.01°C
    Resolution 0.01°
    Access Opening 3.25″ x 4.5″ (86 x 114 mm)
    Immersion Depth 7″ (180 mm) max
    Tank Capacity 1 gallon (4 liters)
    Cooling Time From 25°C to –80°C, 130 minutes
    Refrigeration Cascade Two ¼ HP compressors
    Heater Power 500 W
    Automation Package Interface-it software and RS-232 included
    Power 115 VAC (±10%), 60 Hz, 15 A or 230 VAC (±10%), 50 Hz, 8 A, 1700 VA
    Size 12″ W x 30″ H x 24″ D (305 x 762 x 610 mm)
    Weight 115 lb. (52 kg)
